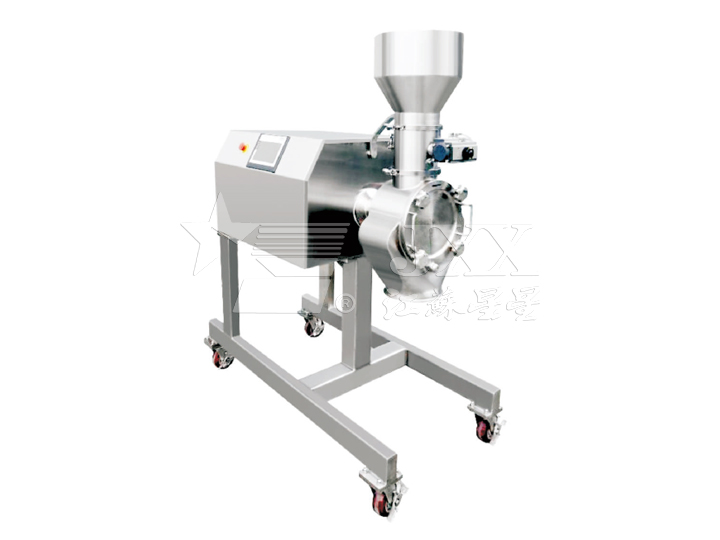

Hammer mill

It is suitable for crushing materials in medicine, food and other industries, and it is widely used.

PRINCIPLE
Under the centrifugal force of the high-speed rotating pulverizing knife, the particles of the pulverized material are thrown radially, and the particles and the knives, the particles and the inner wall of the pulverizing chamber, and the particles and the particles are sheared and impacted at high speed, and the particles satisfying the requirements are along the tangential direction, Pass through the mesh hole until the comminution of all materials is completed.

The output and particle size of the product are closely related to many factors such as feed rate, pulverizing knife speed, and screen pore size. These parameters can be changed to meet different comminution yields and particle size requirements.

FEATURES
◆ All the components in the crushing chamber - the grinding knife, the screen, the sealing ring.the cavity,etc.can be easily disassembled for easy cleaning.
◆ Compact, simple and easy to move.
◆ Using imported pneumatic actuators, using compressed air as the power source, driving the dosing valve to rotate.

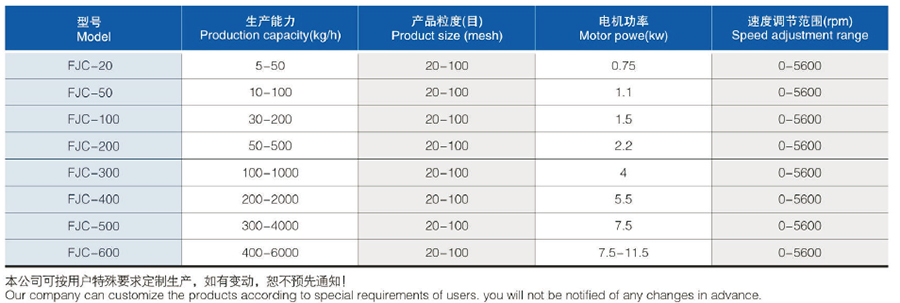

MAIN TECHNICAL PARAMETERS
