Product Description

Product Description
WORKING PRINCIPLE
1. The vacuum freeze drying is an advanced method for the material for the material dewatering. It freezes the moisture material in the low temperature and makes the water inside sublimate directly in the vacuum condition. Then it collects the sublimated vapor by means of the condensing way so as to dewater and dry the material.
2. Being processed by the vacuum freeze drying, the physical, chemical and biological states of the material are basically unchanged. The volatile and nutritious contents in the material, which are easy to be denatured in a warm condition, will be lost a little. When the material is freezing dried, it will be formed into a porous one and its volume be basically the same to that before drying. Therefore, the processed material can be recovered quickly if being watered agfgain, because of its large contacting area and it can be stored for a long period in a sealed vessel.

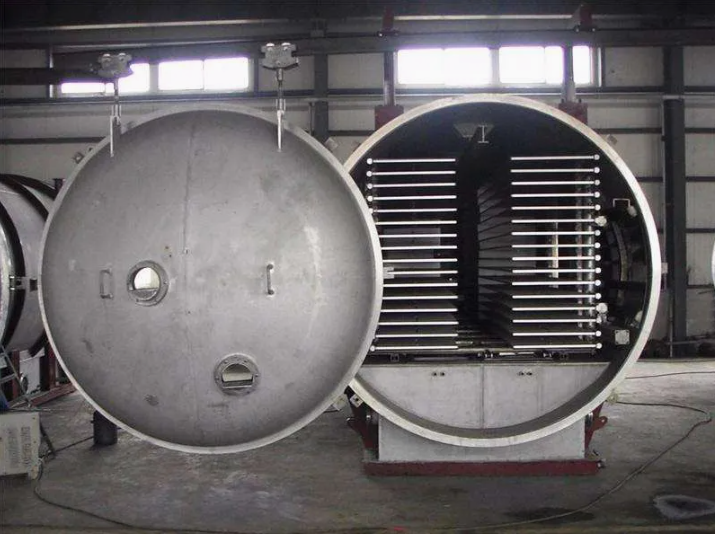

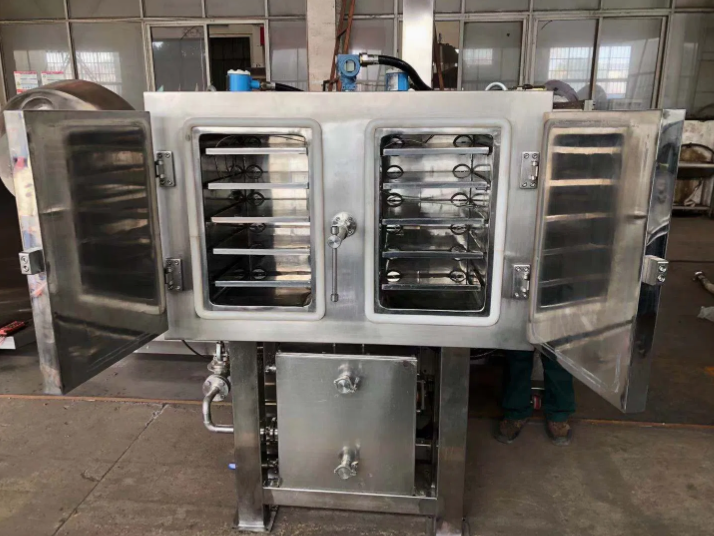

3. For our vacuum freeze dryer , it divides into two types based on the usage : Food type(round shape) and Pharmaceutic type (rectangular shape)

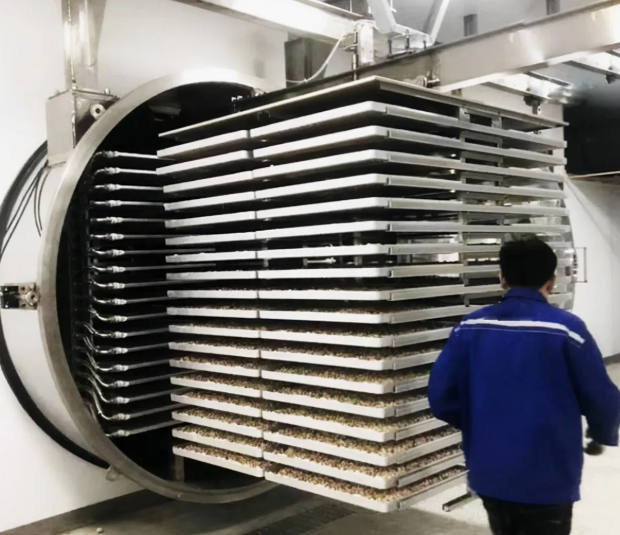

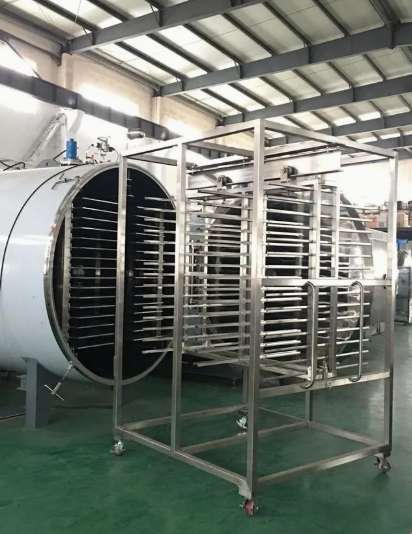

Industry Freeze Dryer Fruit and Vegetable Lyophilizer

Industry Freeze Dryer Fruit and Vegetable Lyophilizer

FEATURES
1.Designed and manufactured based on GMP requirement, FD vacuum freezing dryer adopts a solid construction with a small occupied area and convenient installation and transportation.
2.Its operation can be controlled by hand, automatic program or computer. It will be more reliable if being equipped with the antijamming unit.
3. The metal components as the case, plate, vapor condenser, vacuum pipeline and hydraulic device and all made of stainless steel.
4.Since the shelf is equipped with an advantageous stopped automatically in a bacteria-free condition so as to decrease the labor intensity and increase the product quality.

APPLICABLE MATERIALS
The vacuum freezing dryer can be widely used for the research and production of various heat-sensitive biological products such as vaccine, biological product, medication, vegetable vacuum packing, snake power, turtle capsule and so on.
With the development of the biological, pharmaceutical, food and health are product industries, the vacuum freezing dryer is a necessary equipment in the research institutes and companies in such industries.

Type	FD15	FD30	FD50
Control Type	PLC	PLC	PLC
Body Material	SS304	SS304	SS304
Drying Area	15m2	30m2	50m2
Load Capacity	150Kg	300Kg	500Kg
Tray Size	155049030mm	177444330mm	60100030mm
Tray Qty.	40	39	80
Tray Type	Solid or Net	Solid or Net	Solid or Net
Baffale Plate Qty.	10+1	13+1	85+1
Baffale Temp.	10-100oC	10-100oC	10-100oC
Vacuum Pump	Roots Pump+Screw Pump	Roots Pump+Screw Pump	Roots Pump+Screw Pump
Max Vacuum	<1.0MPa	<1.0MPa	<1.0MPa
Defrosting Mode	Hot Water or Hot Fluorine	Hot Water or Hot Fluorine	Hot Water or Hot Fluorine
Rate Power	39KW	70KW	110KW
