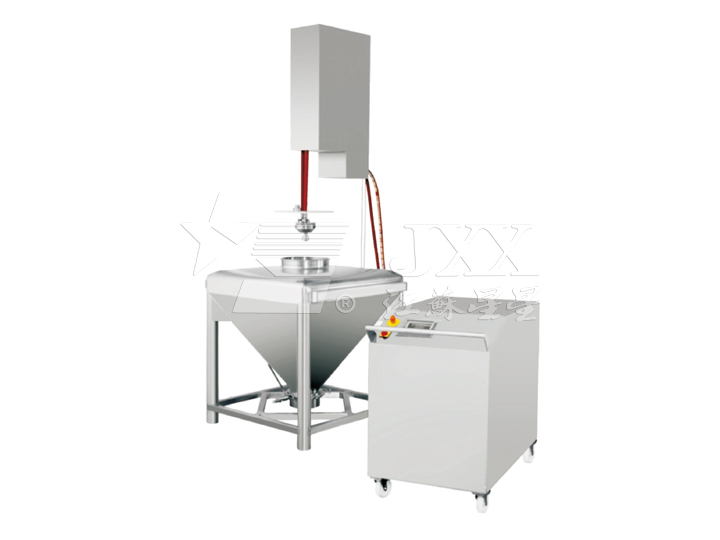

Movable washer

APPLICATION
The machine is mainly used for cleaning vessels during solid preparation production in the pharmaceutical industry. A hopper cleaning machine can clean different specifications of mixing hoppers or transferring hoppers. It is an ideal machine for cleaning vessels in pharmaceutical plants. It is also widely used in such industries as medicine, chemical industry, food, etc.

PRINCIPLE

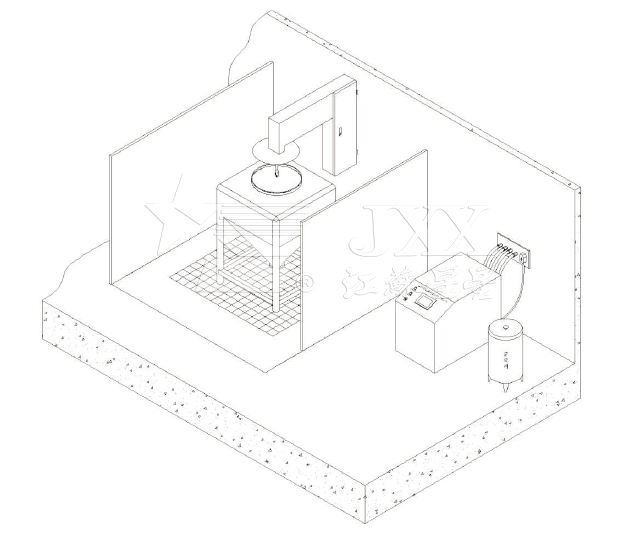

The machine is composed of pump station, cleaning system, control system, etc.When it works, push the mixing hopper, transferring hopper and etc. to be cleaned into the cleaning room.

Open the hopper cover, and put on the hopper cover mounted with rotary cleaning ball and be ready for cleaning. Set the cleaning procedure according to process requirements and start cleaning the internal surfaces according to the set procedure after confirmation. The external surfaces of the vessel are cleaned manually by using the high pressure water gun. Send the cleaned vessel to the vessel drying room for drying, and keep it for future use.

FEATURES
PLC automatic control, flexible setting of cleaning time, cleaning pressure, drying time, cooling time and other working parameters, and print records, in line with GMP requirements for pharmaceutical production.
It can choose tap water, purified water, hot water to clean, and the nozzle group works in turn, which has high work efficiency and saves water resources.
The internal washing nozzle adopts gas-liquid conversion type lifting cylinder, which is reliable and flexible in operation.

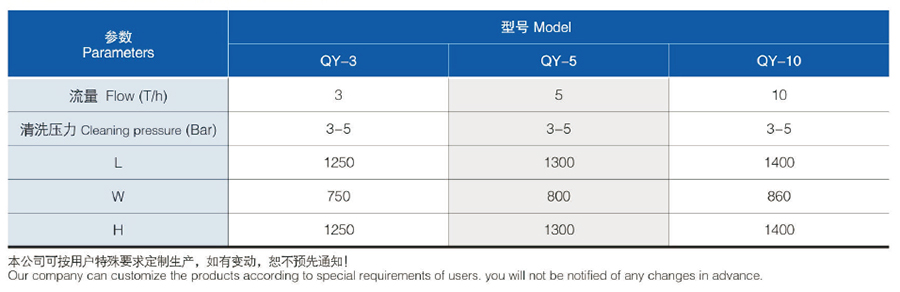

MAIN TECHNICAL PARAMETERS
