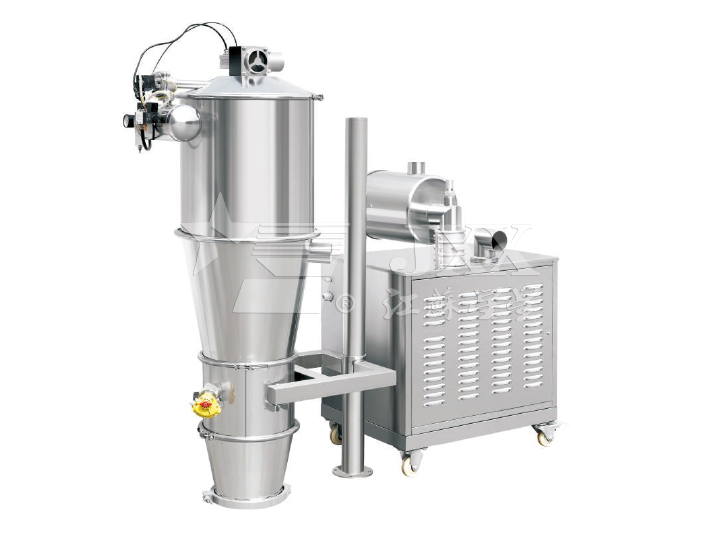

Vacuum feeder

APPLICATION
It is mainly used for conveying powder and granular materials in applications with high height and long distance. The vacuum feeder is a preferred machine for automatic feeding for tablet press, capsule filler, dry type granulator, packaging machine, crusher and vibrating screen. It is widely used in such industries as medicine, chemical industry.food,etc.

PRINCIPLE

The vacuum feeder is also called vacuum conveyor, which is a kind of dust-free closed pipe conveying equipment that conveys granular and powder materials through vacuum suction. It uses the air pressure difference between the vacuum and atmosphere to form air flow inside the pipe and drive the materials to move so as to complete the conveying of materials.

FEATURES

◆ The vacuum feeder adopts the quick-loading structure and is in contact with the material as high-quality austenitic stainless steel.
◆ With material level sensor, sensitive and stable quality.
◆ Unique use high-pressure vortex air pump, small size, low noise and long service life.
◆ Automatic pulse backflush system automatically cleans the filter to ensure the equipment continues to operate without clogging.

◆ Automatic control, automatically complete the cycle work process of feeding, discharging, back blowing and so on.

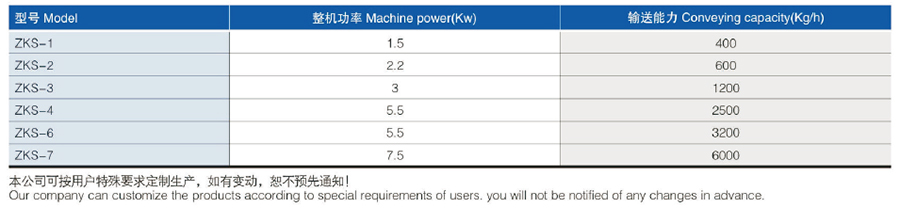

MAIN TECHNICAL PARAMETERS
