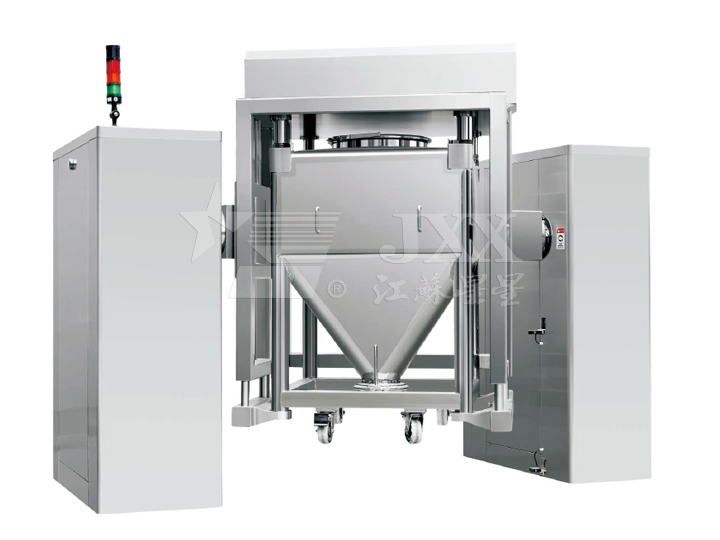

Automatic lift BIN blender

APPLICATION
The machine can automatically complete all actions including lifting, clamping,mixing, lowering,etc.An automatic lifting hopper mixer and several mixing hoppers of different specifications can meet the mixing requirements of large batches and diversified varieties of products. lt is an ideal machine for mixing in pharmaceutical plants.
It is also widely used in such industries as medicine, chemical industry,food,etc.

PRINCIPLE

The machine is composed of machine base, gyrator, driving, system, lifting system, braking system and control system. When it works, push the mixing hopper into the gyrator. Press the "confirm" button on the touch screen to automatically lift the mixing hopper to the designated position and automatically clamp it. After the pressure sensor receives the clamping signal, the mixing system will be driven to work and mixing will be carried out according to the set time and rotation speed.Ater the set parameters are reached, the gyrator will automatically stop vertically. At the same time, the braking system works and the mixing is finished, Then theliftingsystemwillwork.themixinghopperinthegyratorwillfall to the designated position and stop automatically, and process data will be printed. Then the mixing hopper is pushed out and transferred to the next procedure.

FEATURES
◆The structure of the machine is reasonable, the performance is more stable and reliable, and the maintenance and maintenance are convenient;
◆The machine uses the program operating system, process parameter setting system, safety protection shutdown system that fully meets the requirements of the pharmaceutical process; automatic precise alignment system, operation and automatic
◆recording and printing system, realizes automatic production, and operation is very simple

◆Original proportional position sensor makes the equipment safe and reliable, and wil not cause accidents to equipment accidents.
◆The machine is equipped with a hopper that is fully compliant with GMP requirements. The discharge does not remain and the cleaning is convenient.

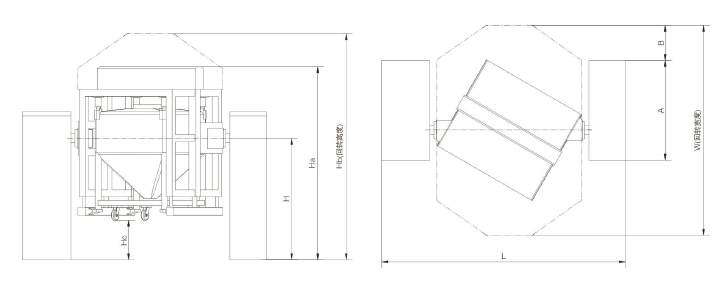

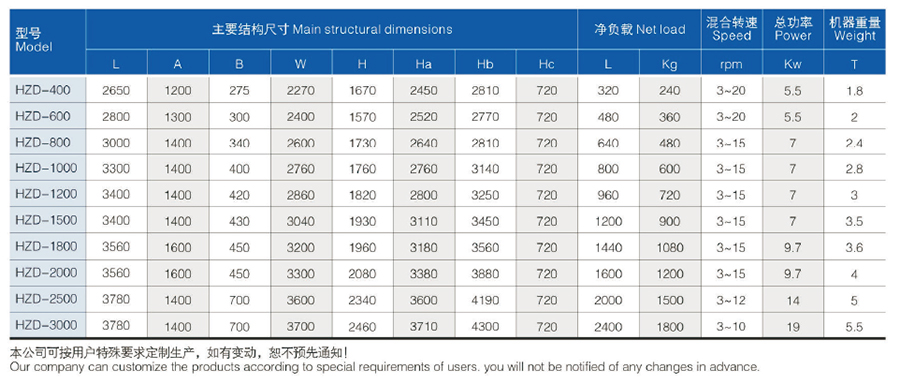

MAIN TECHNICAL PARAMETERS
