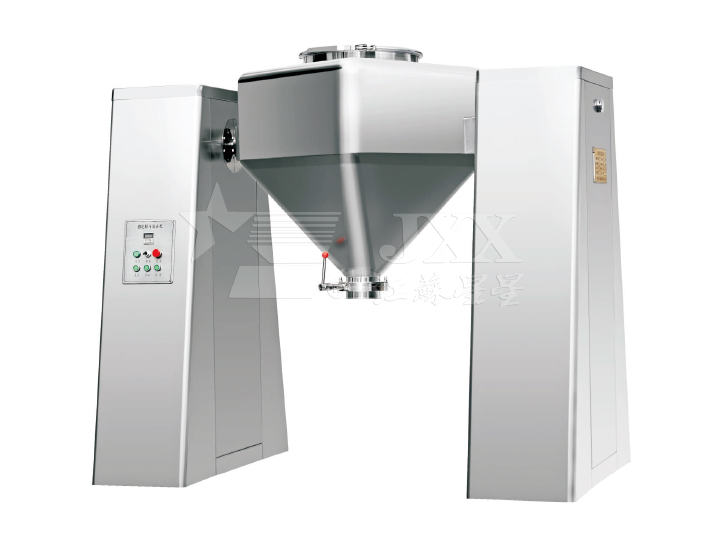

Fixed BIN blender

APPLICATION
The machine is mainly used for mixing granules with granules, granules with powders, powders with powders and other materials during solid preparation production in the pharmaceutical industry.
With such advantages as large mixing batch, reliable force bearing, stable running, etc., it is an ideal machine for mixing in pharmaceutical plants.It is also widely used in such industries as medicine, chemical industry,food,etc.

PRINCIPLE

The machine is composed of machine base, driving system, control system, mixing hopper, etc.When it works, after materials are fed into the hopper, lock the hopper cover.Set the mixing time
and mixing speed according to the process requirements, Start the control system to start the mixing operation. When the set time is reached, the machine will stop automatically. After mixing is finished, carry out material distribution.

FEATURES
◆The inner wall of the hopper is smooth and free of dead angles, easy to clean, and mixed in a fully enclosed state, which can achieve dust-free production and conform to the GMP symbol;
◆The mixing uniformity is up to 99%, and the charging coefficient is 50-80%;
◆It can set the mixing time, mixing speed and other process parameters. Frequency control, the machine starts and stops smoothly without vibration;
◆The discharge valve has anti-missing device, which is detachable and easy to clean.

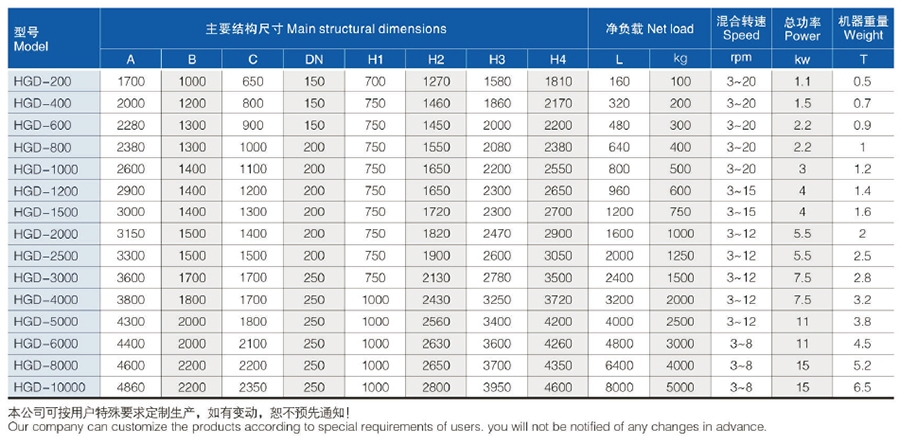

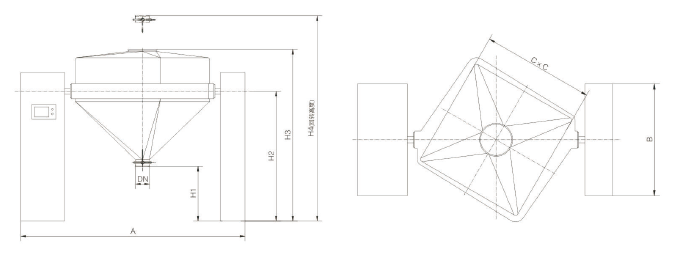

MAIN TECHNICAL PARAMETERS
