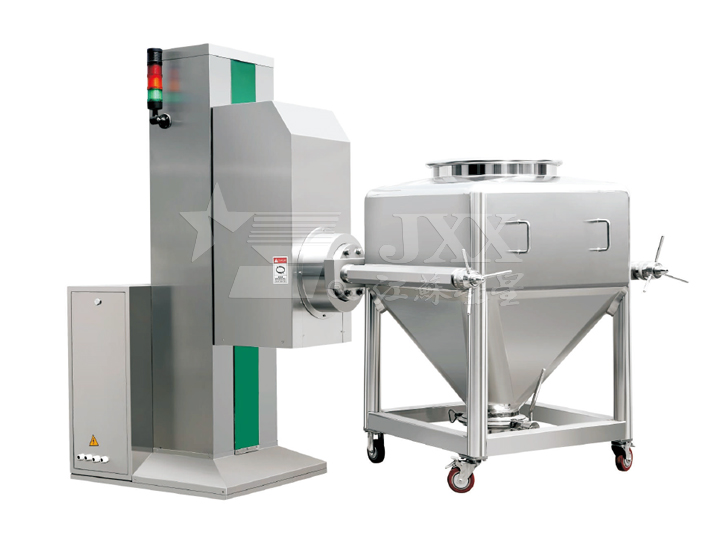

Post BIN blender

APPLICATION
The machine is provided with such functions as automatic lifting. mixing, lowering, etc, A hopper mixer and several mixing hoppers of different specifications can meet the mixing requirements of diversified varieties and different batches of products. It is an ideal machine for mixing in pharmaceutical plants. It is also widely used in such industries as medicine, chemical industry,food, etc.

PRINCIPLE
The machine is composed of column, machine base, rotation crotch, driving system, braking system, control system, etc. Push the mixing hopper into the rotation crotch and lock the nuts.Start the control system to lift the hopper to the mixing height and
position it reliably. The driving system will carry out automatic mixing according to the set time, rotation speed and other data.
After the mixing operation is finished,the rotation crotch will stop vertically, the hopper will automatically fall to the ground, the machine will stop and process data will be printed. Loosen the locknuts of the rotary crotch and push the hopper out and transfer it to the next procedure.

FEATURES
The inner wall of the hopper is smooth (Ra<0.4 μ m), no dead angle,easy to clean, in line with GMP requirements.
The discharge valve has anti-missing device, reliable sealing. detachable and easy to clean.
PLC control, frequency control, touch screen operation, can set the working speed, working time and other parameters, and can automatically locate, automatically print records and fault prompts,alarms.
The floor space is small, and the installation location is convenient and flexible.
It is convenient to replace the hopper.

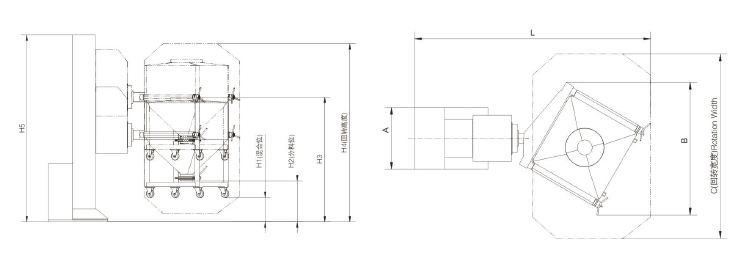

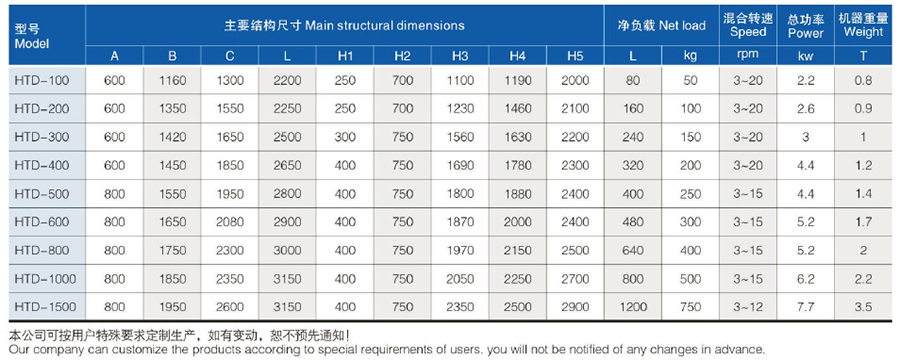

MAIN TECHNICAL PARAMETERS
