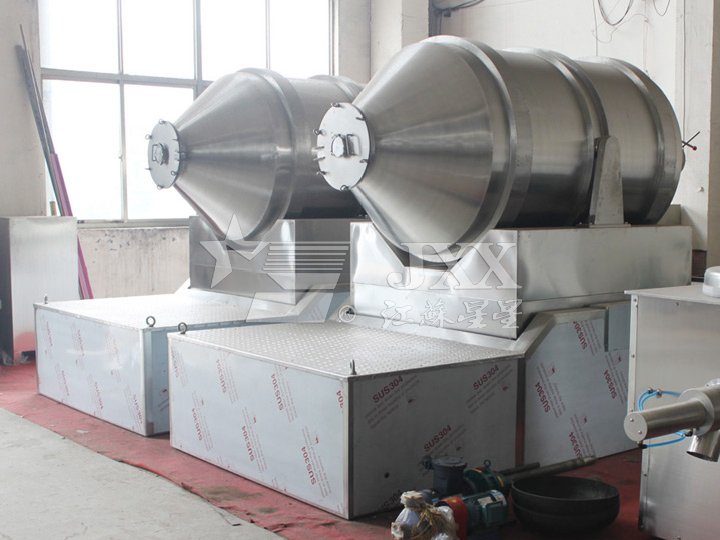

EYH series two-dimensional motion mixer

Working principle

The two-dimensional mixing machine mainly consists of three parts: a rotating drum, a swinging frame, and a frame. The rotary drum is installed on a swing frame, supported by four rollers and axially positioned by two gear wheels. Among the four supporting rollers, two transmission wheels are driven by a rotating power system to rotate the rotary drum. The swing frame is driven by a set of crank swing rod mechanisms, which are mounted on the frame and supported by bearing components.

Performance characteristics

The rotary drum of the EYH two-dimensional mixer can perform two movements simultaneously, one is the rotation of the rotary drum, and the other is the oscillation of the rotary drum with the swing frame. The mixed material rotates, flips, and mixes with the rotating drum, while also undergoing left and right back and forth mixing movements with the swinging of the drum. Under the combined action of these two movements, the material is fully mixed in a short period of time. The EYH two-dimensional mixer is suitable for mixing all powder and granular materials.

Structural diagram

Technical specifications

Specification and model	volume（L）	loading coefficient	Loading weight （kg）	External dimensions（mm）						power（kw)
				A	B	C	D	M	H	turn	swing
EYH100	100	0.5	40	860	900	200	400	1000	1500	1.1	0.75
EYH300	300	0.5	75	1000	1100	200	580	1400	1650	1.1	0.75
EYH600	600	0.5	150	1300	1250	240	720	1800	1850	1.5	1.1
EYH800	800	0.5	200	1400	1350	240	810	1970	2100	1.5	1.1
EYH1000	1000	0.5	350	1500	1390	240	850	2040	2180	2.2	1.5
EYH1500	1500	0.5	550	1800	1550	240	980	2340	2280	3	1.5
EYH2000	2000	0.5	750	2000	1670	240	1100	2540	2440	3	2.2
EYH2500	2500	0.5	950	2200	1850	240	1160	2760	2600	4	2.2
EYH3000	3000	0.5	1100	2400	1910	280	1220	2960	2640	5	4
EYH5000	5000	0.5	1800	2700	2290	300	1440	3530	3000	7.5	5.5
EYH10000	10000	0.5	3000	3200	2700	360	1800	4240	4000	15	11
EYH12000	12000	0.5	4000	3400	2800	360	1910	4860	4200	15	11
EYH15000	15000	0.5	5000	3500	3000	360	2100	5000	4400	18.5	15

Note: The specific gravity of material stacking is calculated as 0.6g/cm3. If it exceeds the limit, please indicate it when ordering.
