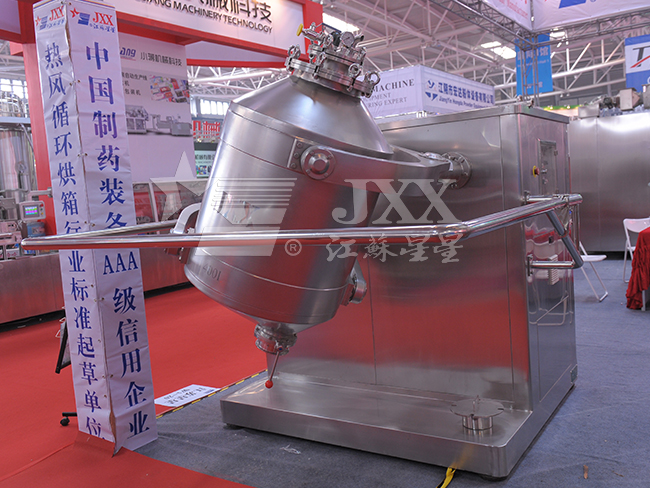

HS series 3D motion mixer

Performance characteristics

Under the driving force of the active shaft, the loaded cylinder undergoes cyclic compound movements such as translation, rotation, and rolling, promoting the material to move in three directions along the cylinder, thereby achieving the mutual flow, diffusion, accumulation, and doping of various materials, and achieving the goal of uniform mixing.

Adapt to materials

The mixing cylinder of this machine moves in multiple directions, and the material has no centrifugal force, no specific gravity segregation, layering, or accumulation. Each component can have a significant weight ratio, and the mixing rate is high. It is currently an ideal product among various mixing machines.

The cylinder has a high loading rate of up to 90% (only 50% for ordinary mixing machines), high efficiency, and short mixing time.

The various parts of the cylinder are arc-shaped transitions and undergo precision polishing treatment.

Used in pharmaceutical, chemical, food, light industry, electronics, machinery, mining, metallurgy, and national industries

High uniformity mixing of powder and granular materials from various industrial and scientific research institutions.

Structural diagram

Technical specifications

model	SYH-5	SYH-15	SYH-50	SYH-100	SYH-200	SYH-400	SYH-600	SYH-800	SYH-1000	SYH-1200	SYH-1500	SYH-2000
Barrel volume(L)	5	15	50	100	200	400	600	800	1000	1200	1500	2000
Upper limit of loading capacity(L)	4.5	13.5	45	90	180	360	540	720	900	1080	1350	1800
Upper limit of loading weight(kg)	1.5-2.7	4-8.1	15-27	30-54	50-108	100-216	150-324	200-432	250-540	300-648	400-810	500-1080
Spindle speed(r/min)	0-20	0-20	0-20	0-20	0-15	0-15	0-13	0-10	0-10	0-9	0-9	0-8
power（kw）	0.25	0.37	1.1	1.5	2.5	4	5.5	7.5	11	11	15	18.5
size（mm）	600×1000 ×1000	800 ×1200 ×1000	1150 ×1400 ×1000	1250 ×1800 ×1550	1450 ×2000 ×1550	1650 ×2200 ×1550	1850 ×2500 ×1750	2100 ×2650 ×2000	2150 ×2800 ×2100	2000 ×3000 ×2260	2300 ×3200 ×2500	2500 ×3500 ×2800
weight（kg）	100	200	300	800	1200	1200	1500	1700	1800	2000	2400	3000

Note: The specific gravity of material stacking is calculated as 0.6g/cm3. If it exceeds the limit, please indicate it when ordering.
