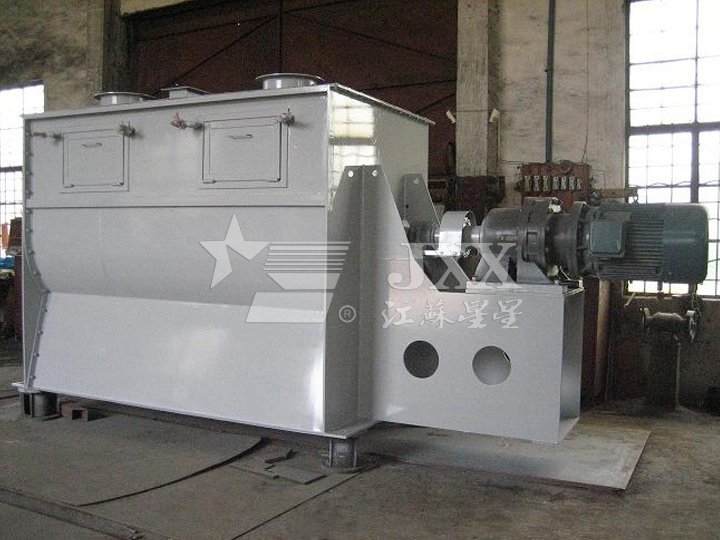

WLDH series horizontal screw belt mixer

Working principle

This model is composed of a container, spiral stirring blades, and transmission components: spiral blades are generally made into two or three layers, with the outer spiral collecting materials from both sides to the center, and the inner spiral conveying materials from both sides of the center, forming convective mixing.

Performance characteristics

High loading coefficient and small equipment footprint:

When mixing sticky or cohesive materials, cleaning is difficult.

Adapt to materials

The spiral belt mixer is generally used for mixing sticky or cohesive powder particles, as well as adding liquid and paste materials to the powder particles. At the same time, due to the difficulty in cleaning sticky materials, it is suitable for mixing in situations with high production and infrequent variety changes.

Technical specifications

Model specifications	WLDH-0.1	WLDH-0.3	WLDH-0.5	WLDH-1	WLDH-1.5	WLDH-2	WLDH-3	WLDH-4	WLDH-6	WLDH-8	WLDH-10
Disposable mixing(kg)	30-50	100-150	200-300	400-600	600-900	800-1200	1200-1800	1600-2400	2400-3600	3200-4800	4000-6000
power(kg)	1.5-4	3-3.5	4-11	7.5-15	11-18.5	15-22	18.5-30	22-37	37-55	37-55	37-55
Equipment weight(kg)	300	500	900	1400	1900	2500	3100	3600	5300	6800	7800

Note: The above products are made of carbon steel C and stainless steel P.
